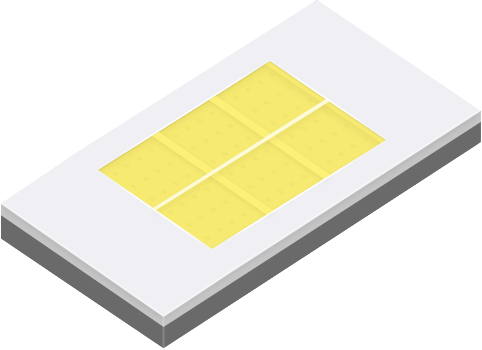

W7035HJ1

Photoelectric parameters: Products test time 20 ms, ambient temperature 25℃。 Luminous Angle is 50% of the central light intensity Angle, can provide ProSource/Lighttools, tracepro, ASAP, ZEMAX and other optical files。 The luminous flux measurement tolerance is ±10%, CIE(X,Y) measurement tolerance is ±0.007, and voltage measurement tolerance is ± 0.1 V; Color rendering index tolerance ±2。

  • Flip chip aluminum nitride ceramic package
  • Dimensions: 7.00*3.50*0.82mm_White/0.94mm_Gold
  • High luminous Flux ,Low attenuation
  • Lead free products ,RoHs standard
  • Automotive lighting
